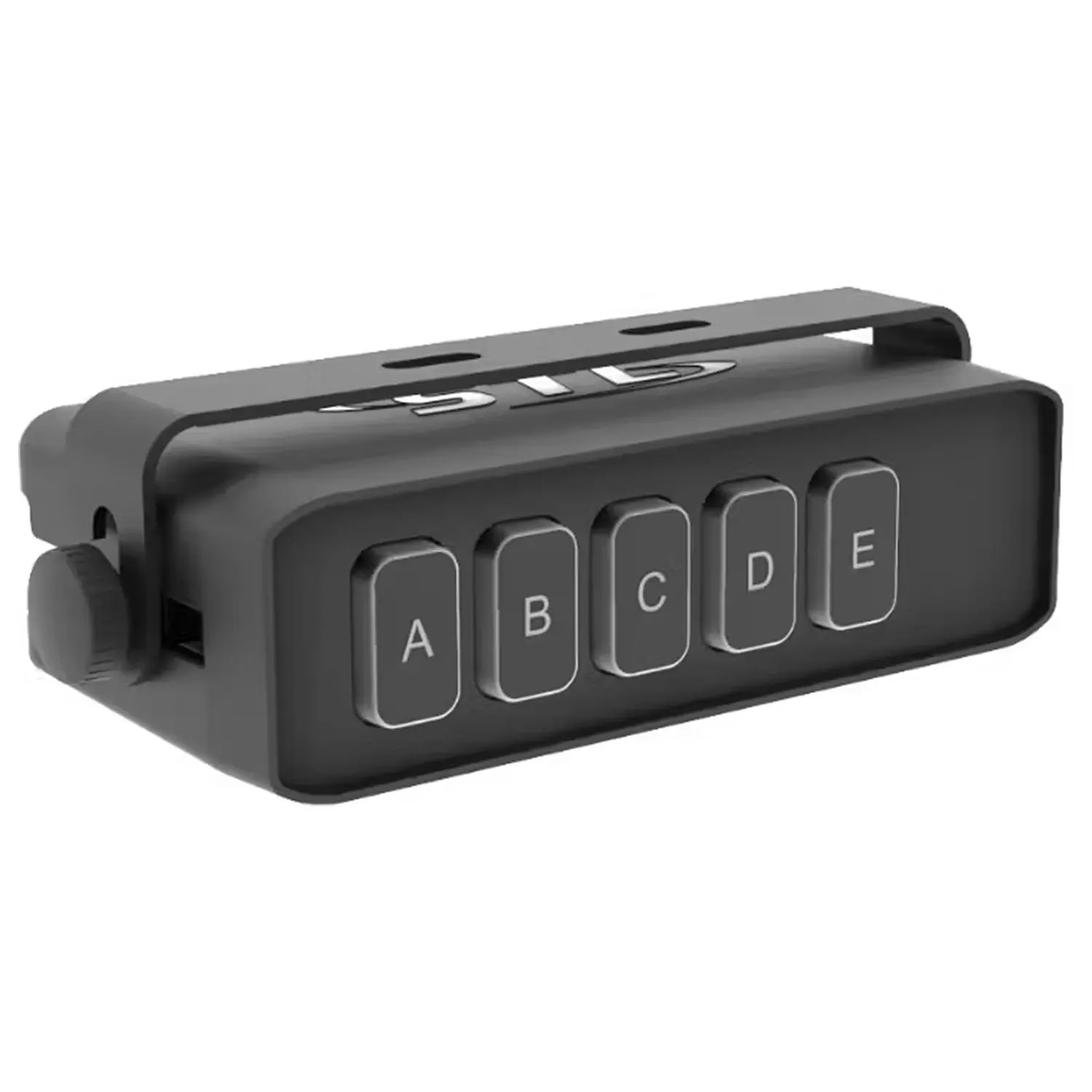

Universal 5 Switch Control Box w/ Night Mode™ SKU: C-5SCB
- U.S. Patent No. D813,824
-
![image]()
2 Year Warranty*
-
![image]()
60 Day Return Policy*
-
![image]()
CUSTOMER SUPPORT
-
![image]()
Free Shipping on orders $59+*

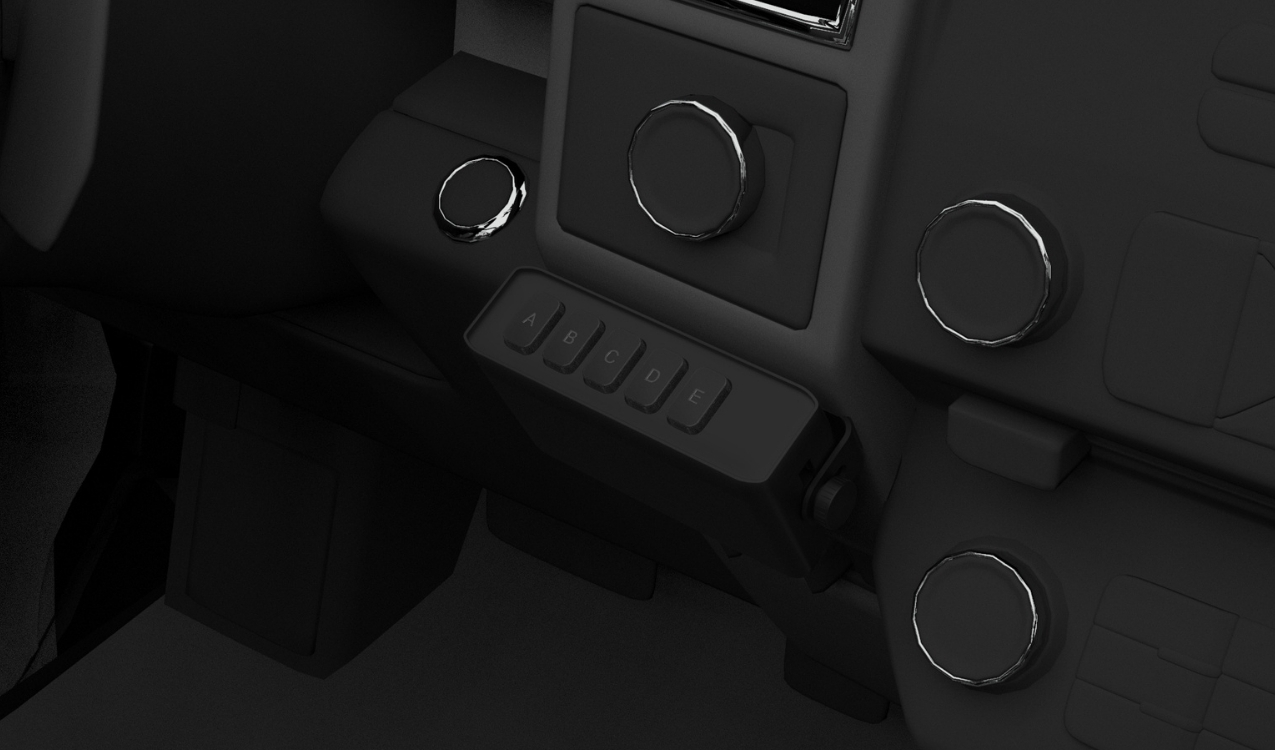

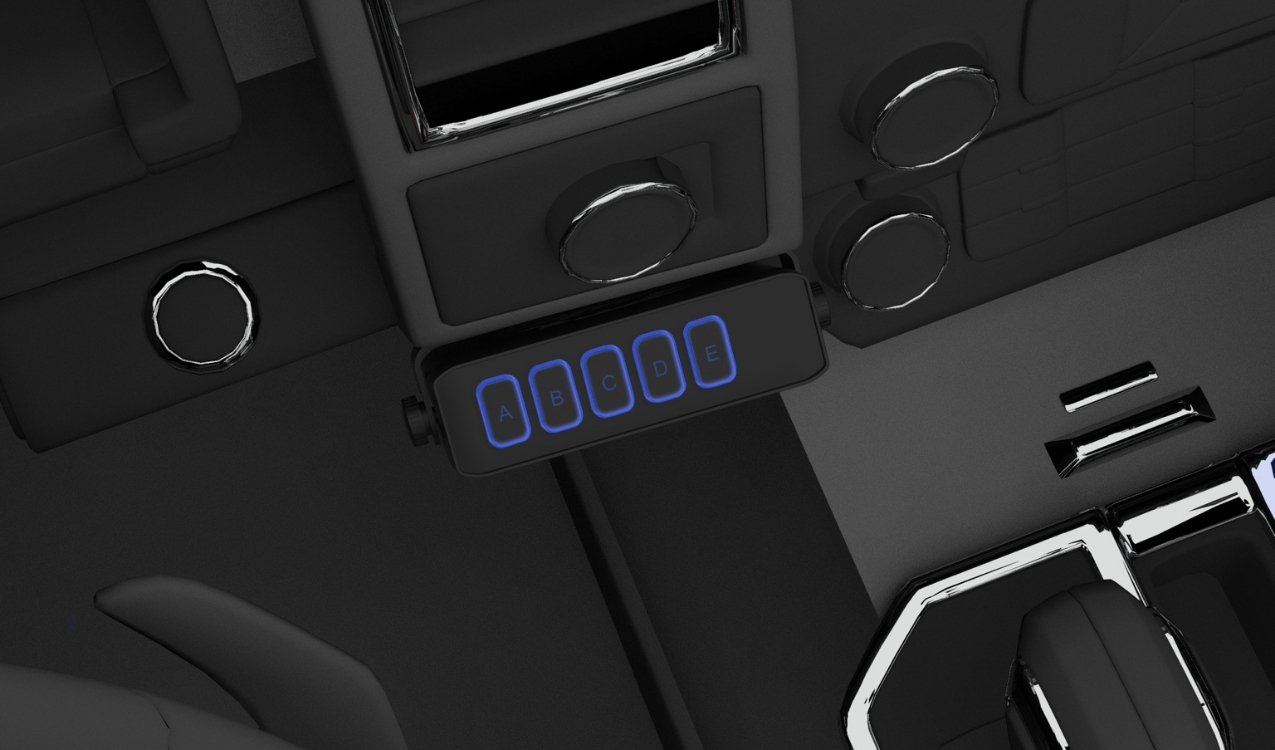

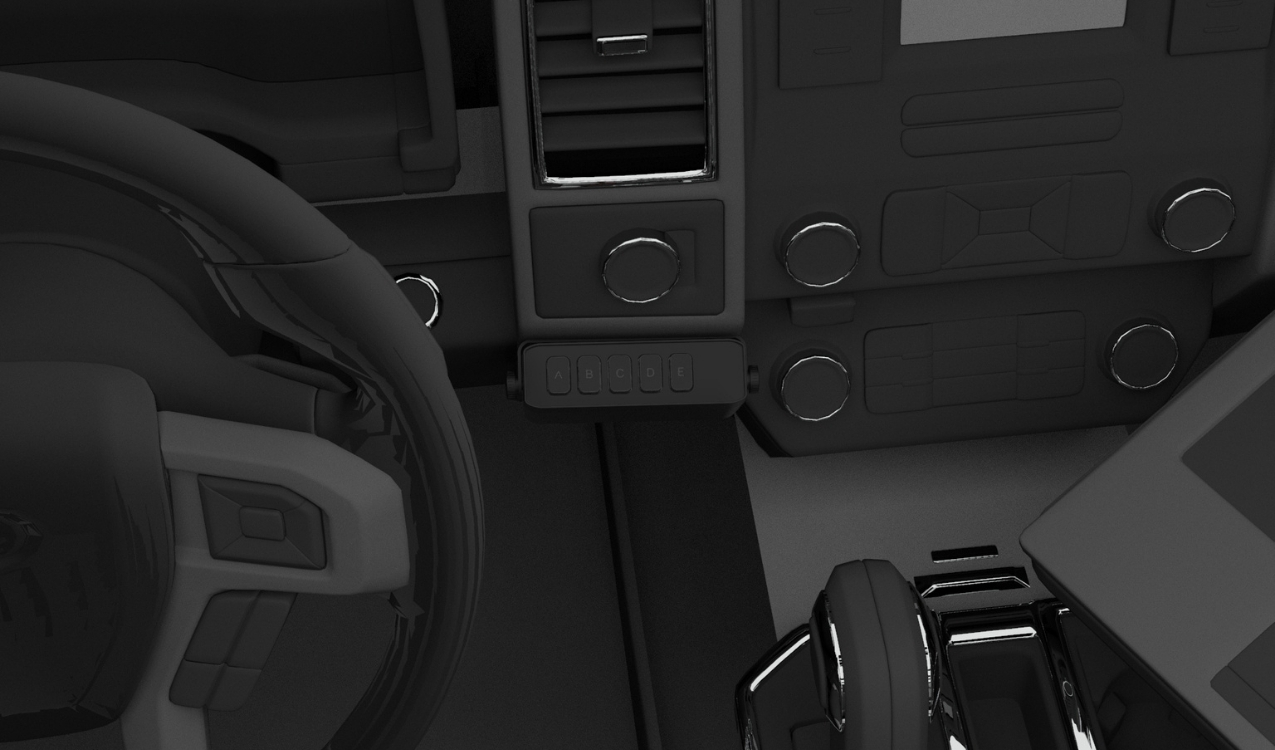

Application Photos
Product videos
Videos
About The Universal 5 Switch Control Box w/ Night Mode
With a 15 Amp capacity per switch, the SpeedTech Lights 5 Switch Box packs a high-powered control center into a compact frame. Enhanced with 5 backlit LED switches and labeled cables for simplified installation, this unit has everything you need for powering advanced installs. This unit comes with 4 on/off rocker switches and 1 momentary switch.With one button control of grille lights, dash lights, light bars, LED beacons, or any other electrical products, the 5 Switch Box is an affordable solution for a wide range of emergency vehicle applications.
New Night Mode:

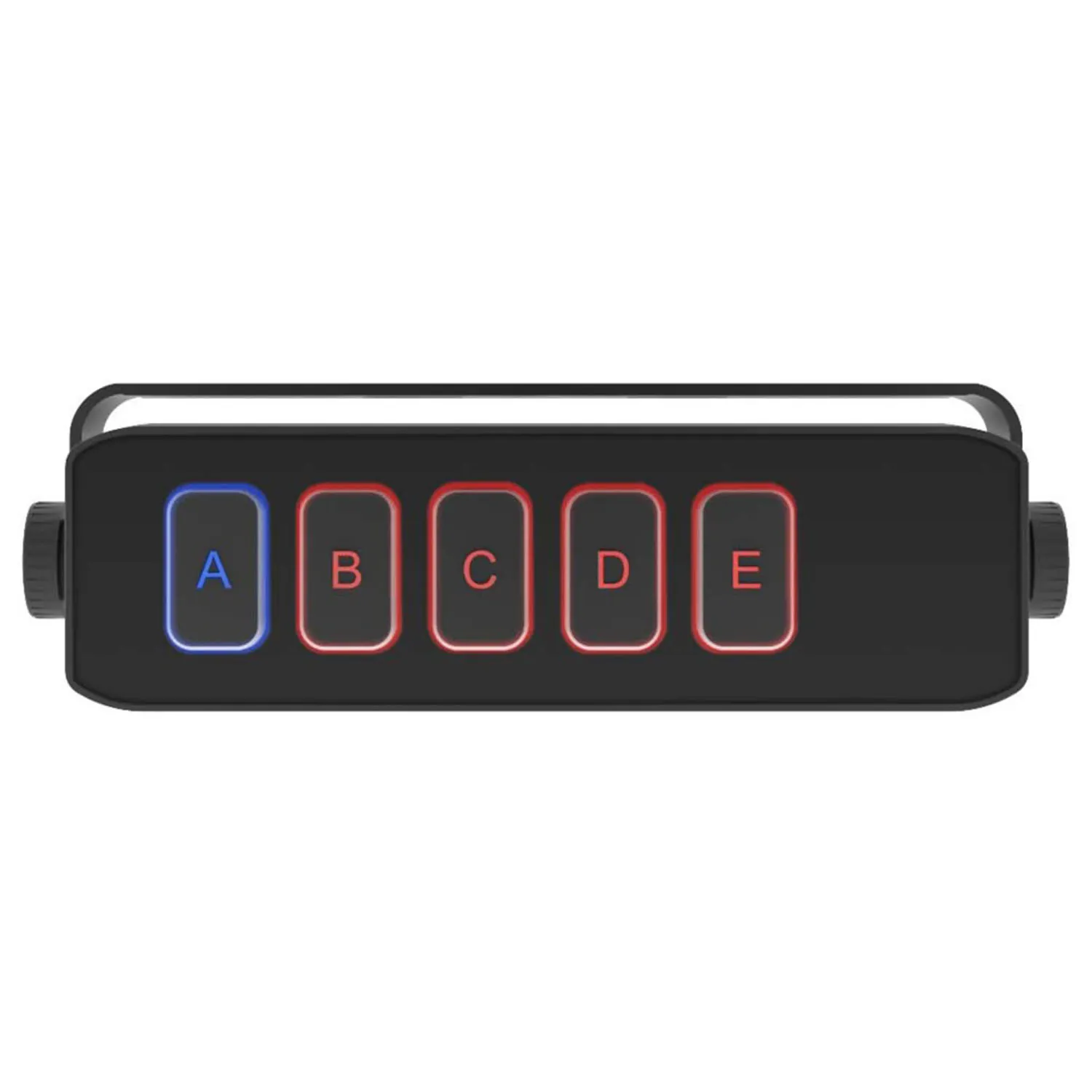

---White Cable Labeled 'N' = Hardwire the white cable labeled 'N' to your headlight +12VDC line to automate this feature. When your white cable has power, the red backlight 'Night Mode' LEDs will activate.
Features:
- NEW Night Mode (see details below)
- Powered by 12V
- 4 On/Off Switches (A/B/C/D), 1 Momentary Toggle Switch (E)
- Labels on switch: A/B/C/D/E
- 15 amp capacity per switch
- Blue backlit LED buttons when button(s) activated
- Compatible with all STL and third party units
- Includes U bracket for mounting
- Includes 8" of cable
- Weatherproof housing
- 2 Year Warranty*
- *See Terms and Conditions
WHAT'S INCLUDED:
- Universal 5 Switch Control Box
- 8" of Cable
- U Shaped Mounting Bracket w/ Hardware
- Extension Cable
Literature

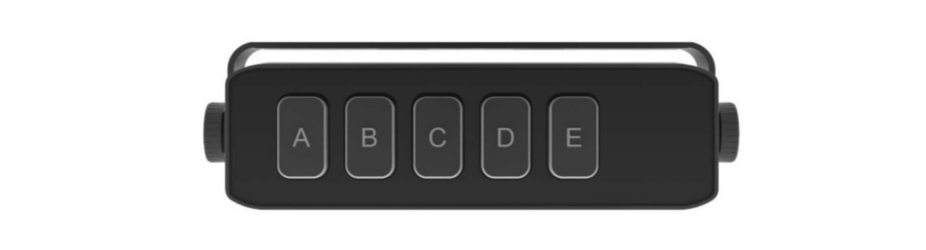

NIGHT MODE & LED BACKLIT BUTTONS
