Super Take Down® K-Force TIR 47 Full LED Light Bar (Dual Memory) SKU: F-TKFSTD47
- SAE Certification No. 201094
- RoHS Certification No. ENC171106GZ19
- U.S. Patent No. D835535, D835565, D797360
-
![image]()
5 Year Warranty*
-
![image]()
60 Day Return Policy*
-
![image]()
Eclipse Optic Technology
-
![image]()
$9.99 Shipping Per Bar
Features & Mounting
Product videos
Videos
Specifications
Specifications
About the Super Take Down® K-Force® TIR 47 Full Size LED Light Bar (Dual Memory)

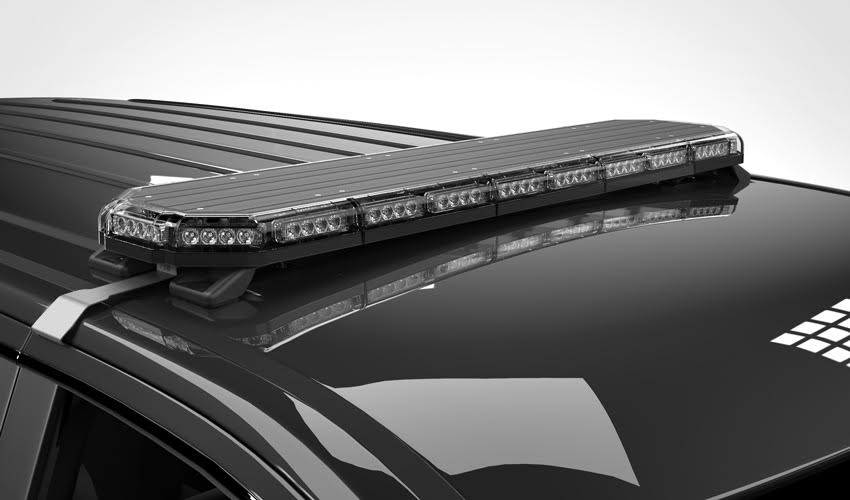

The K-Force® 47 TIR Super Take Down® LED Full Size Light Bar is one of the most powerful and desired Police Light Bars on the market. Whether you’re looking for an advanced system with multicolor traffic advisor technology or Super TD® for a police car or a custom LED configuration, the K-Force® 47 STD has everything you could ever want in a full sized LED Light Bar.

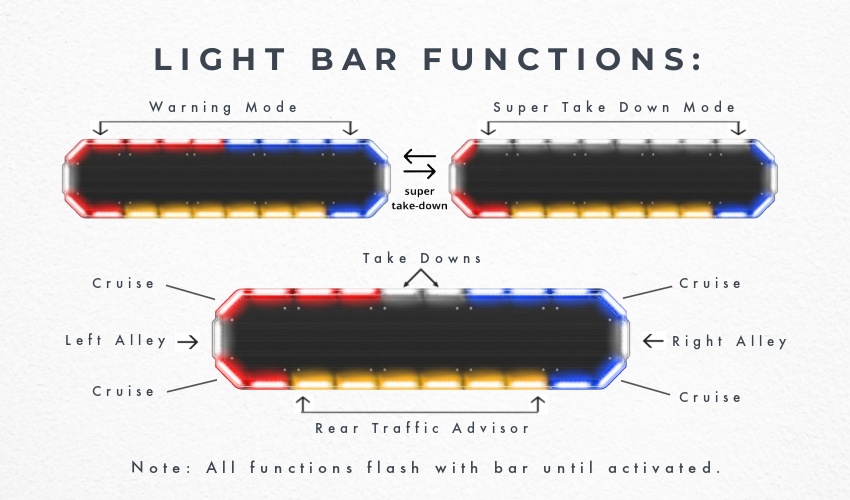

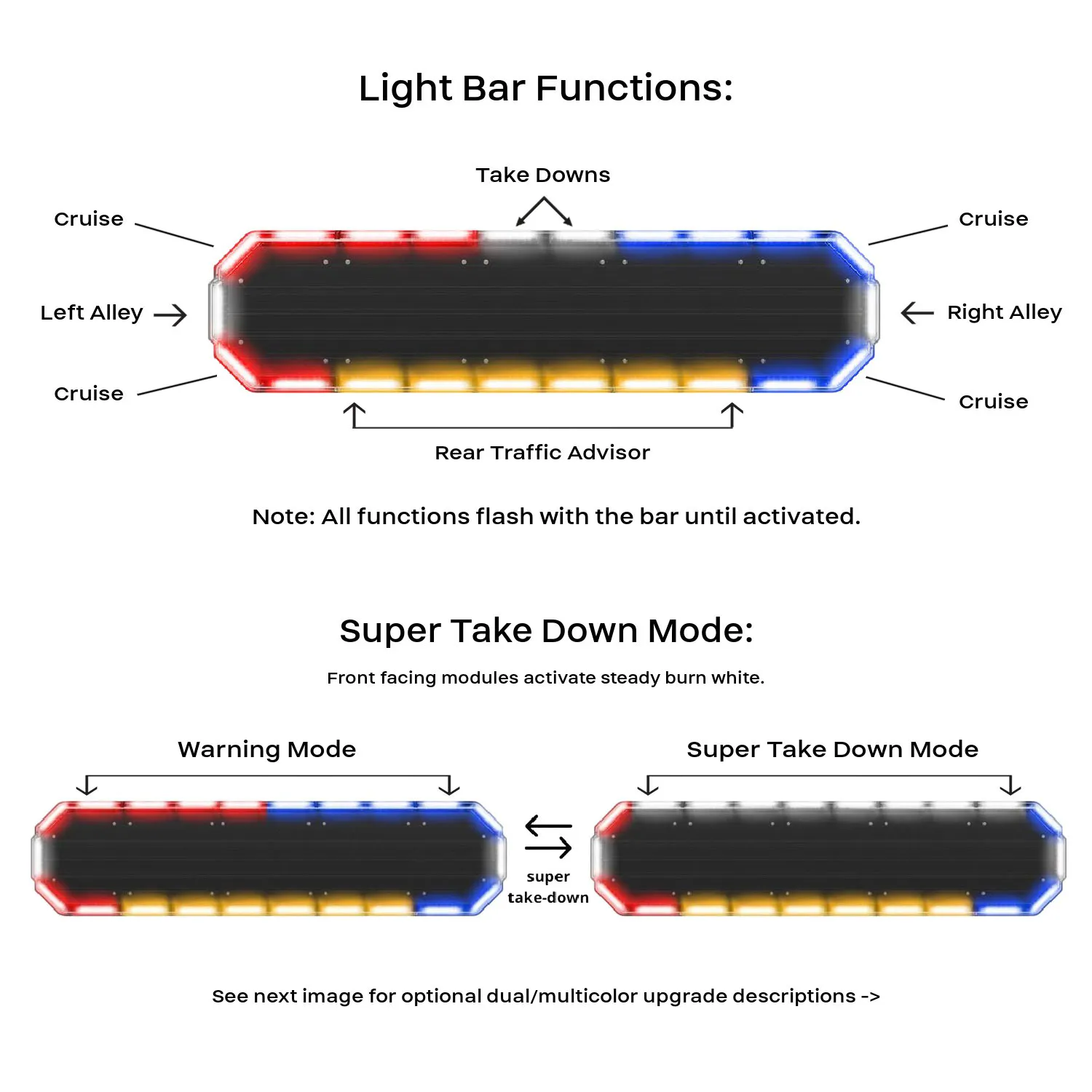

So what is a Super Take Down® light bar? This means that when this light bar is in flashing mode, the bar is flashing in whatever color was selected upon purchase, for example Red/Blue, when in flashing mode. When Super TakeDown® mode is activated, the front 8 LED modules spanning the bar then switch from colored flashing to all Clear Steady Burn Illumination mode. This provides an extremely powerful and bright flood of LED lighting to illuminate the area in front of you. This is perfect for a variety of applications but mostly for Police Lights and other law enforcement applications. With the new dual memory modes, you can program up to 2 different patterns for a quick switch back and forth between memory 1 and memory 2 using the mode button(s).

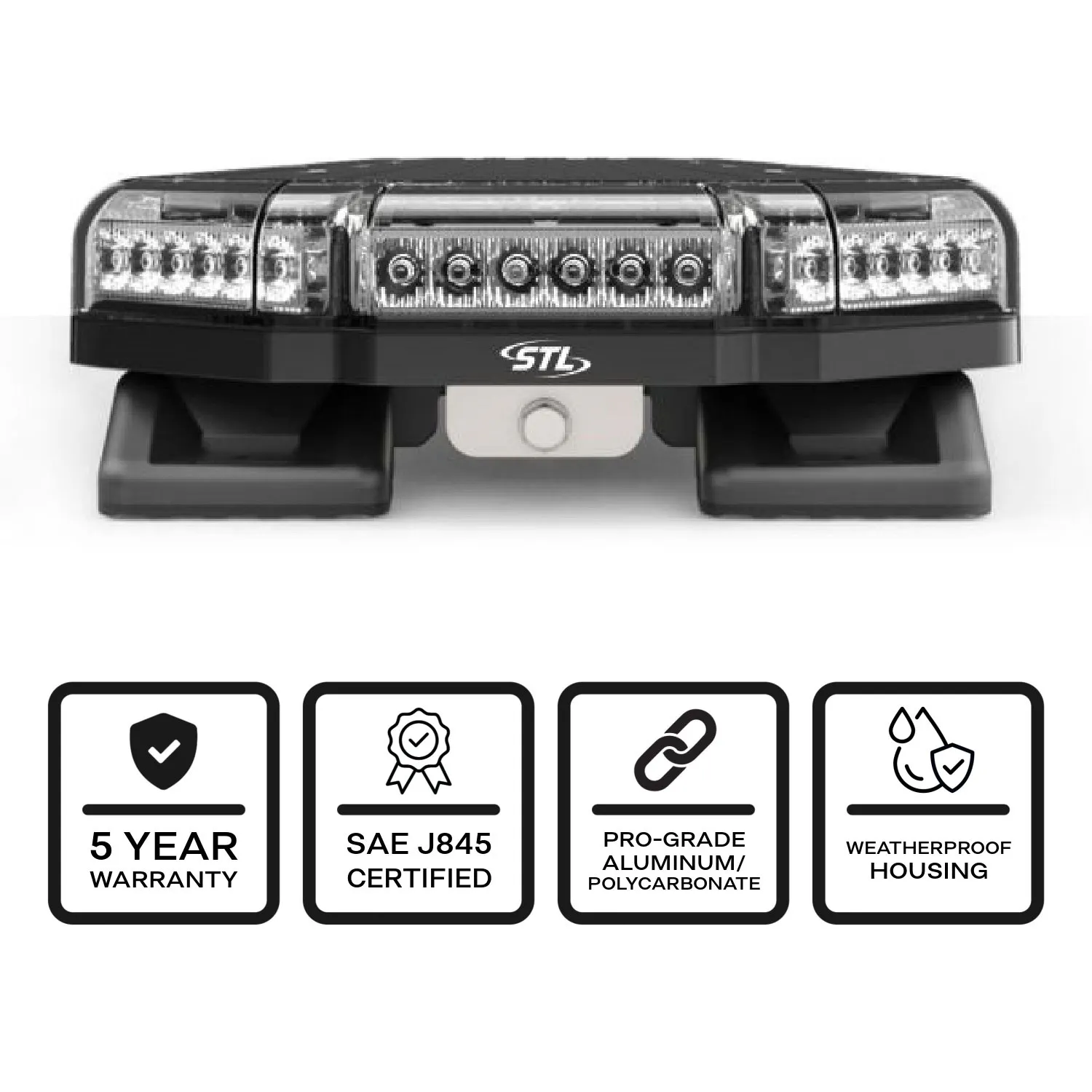

With SAE J845 Certification and a compact & low profile housing, the SpeedTech Lights K-Force® 47 TIR Light Bar is one of the best values in the emergency vehicle lighting industry, offering tons of features and high power LEDs at an extremely affordable cost, and is backed by the trusted STL 5 Year Warranty.
- STD K-Force 47 TIR Full Size Light Bar

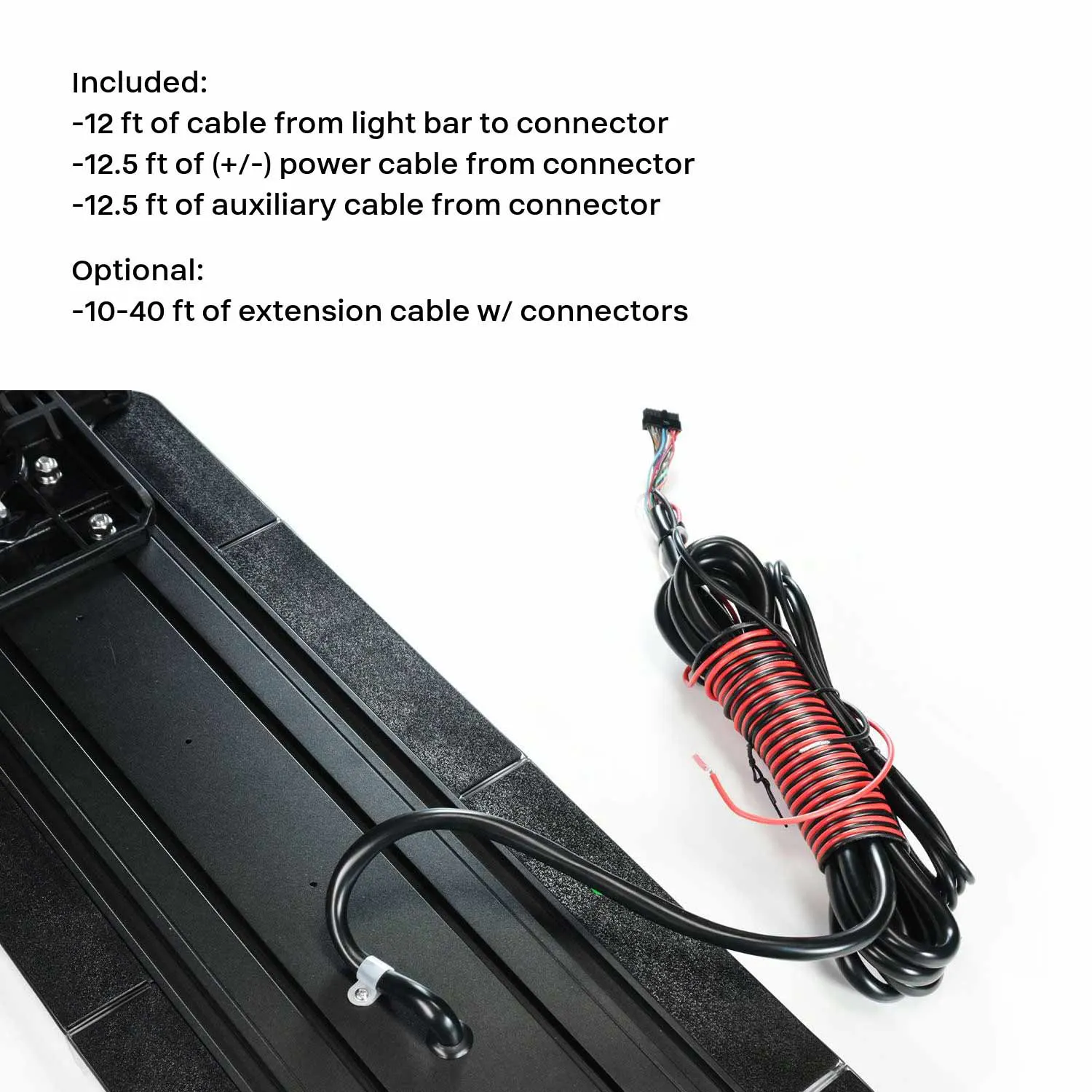

- 12' of Cable from Light Bar to Connector
- 12.5' of Power Cable from Connector

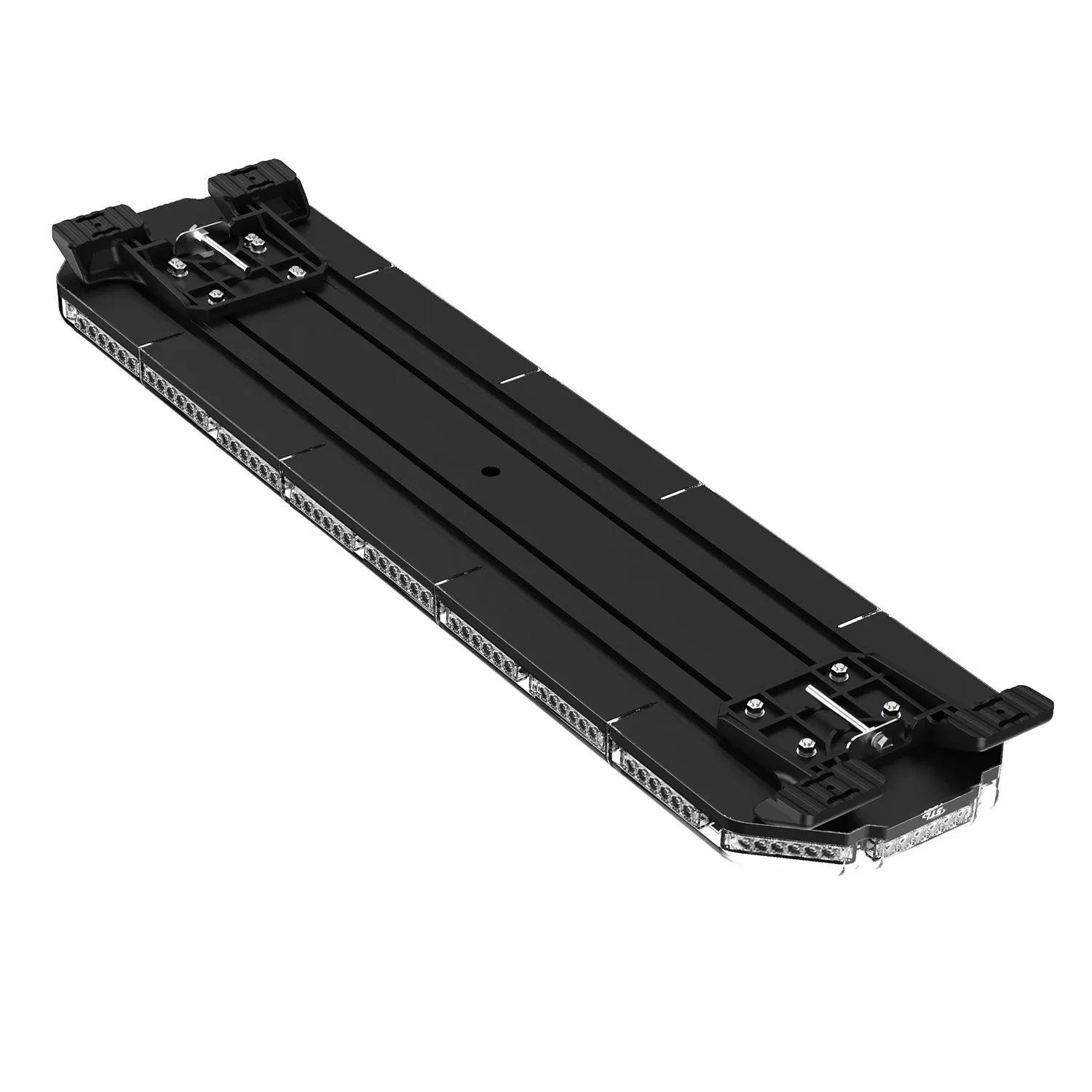

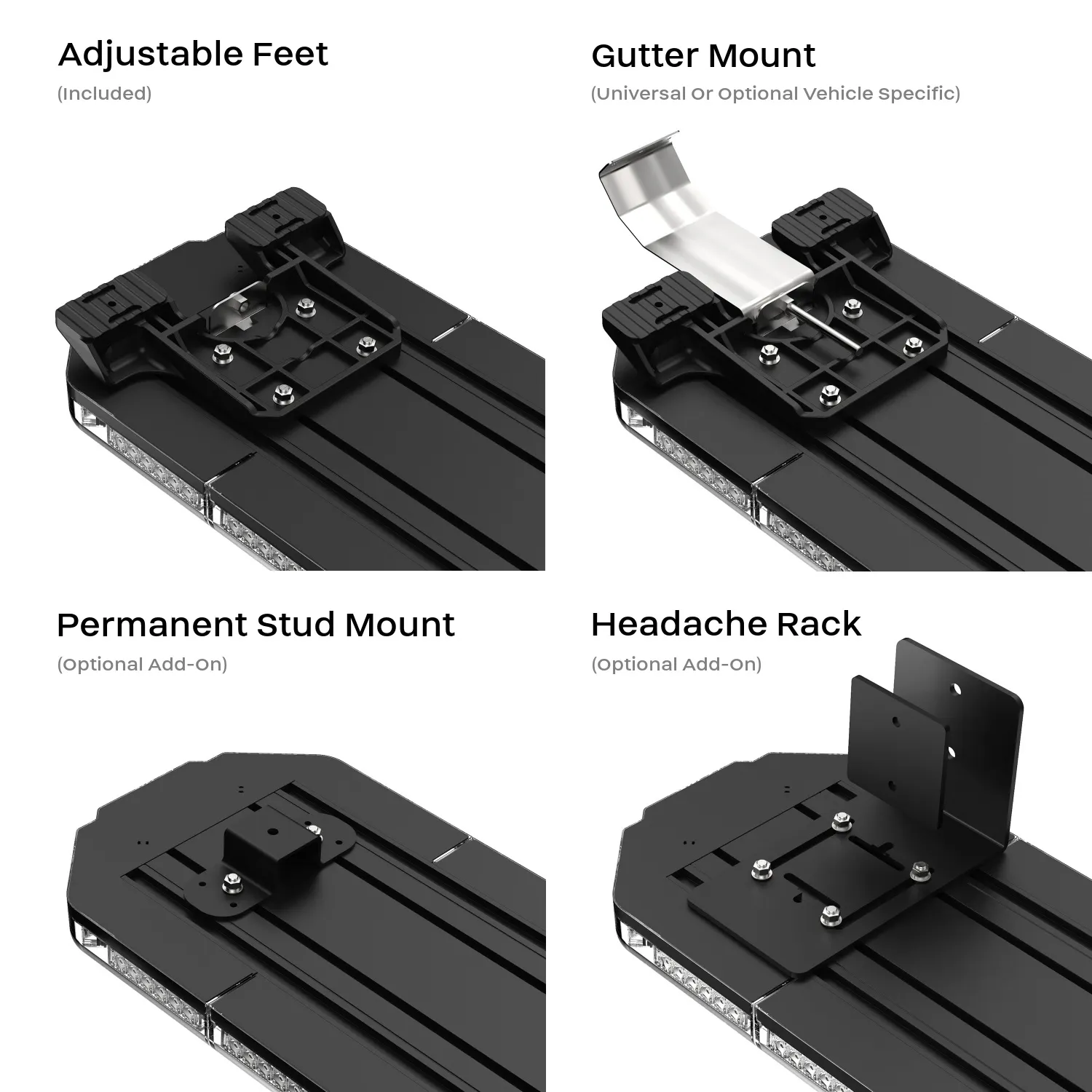

- Adjustable Light Bar Feet Attached
- Universal Gutter Brackets (unless different mounting option is selected in drop-down)
- STD Supreme Control Box
- 10' Extension Cable (22 Gauge)
- 20-40' Extension Cable (16 Gauge)
- Variety of Mounting Options

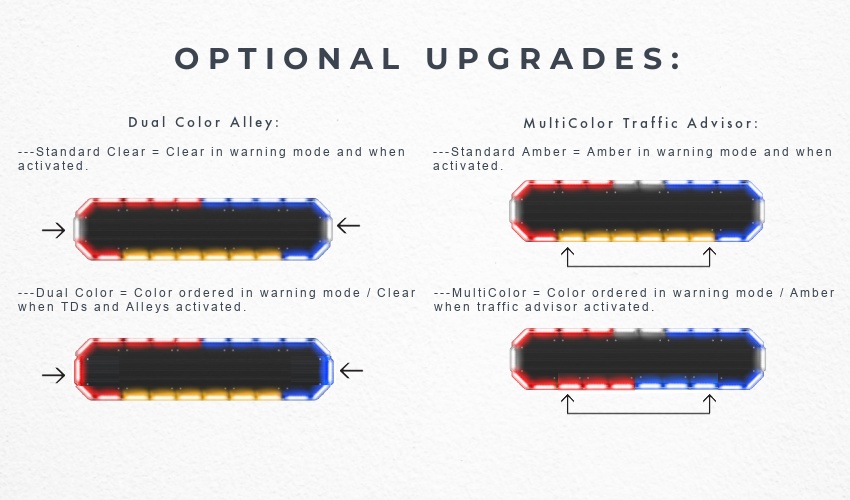

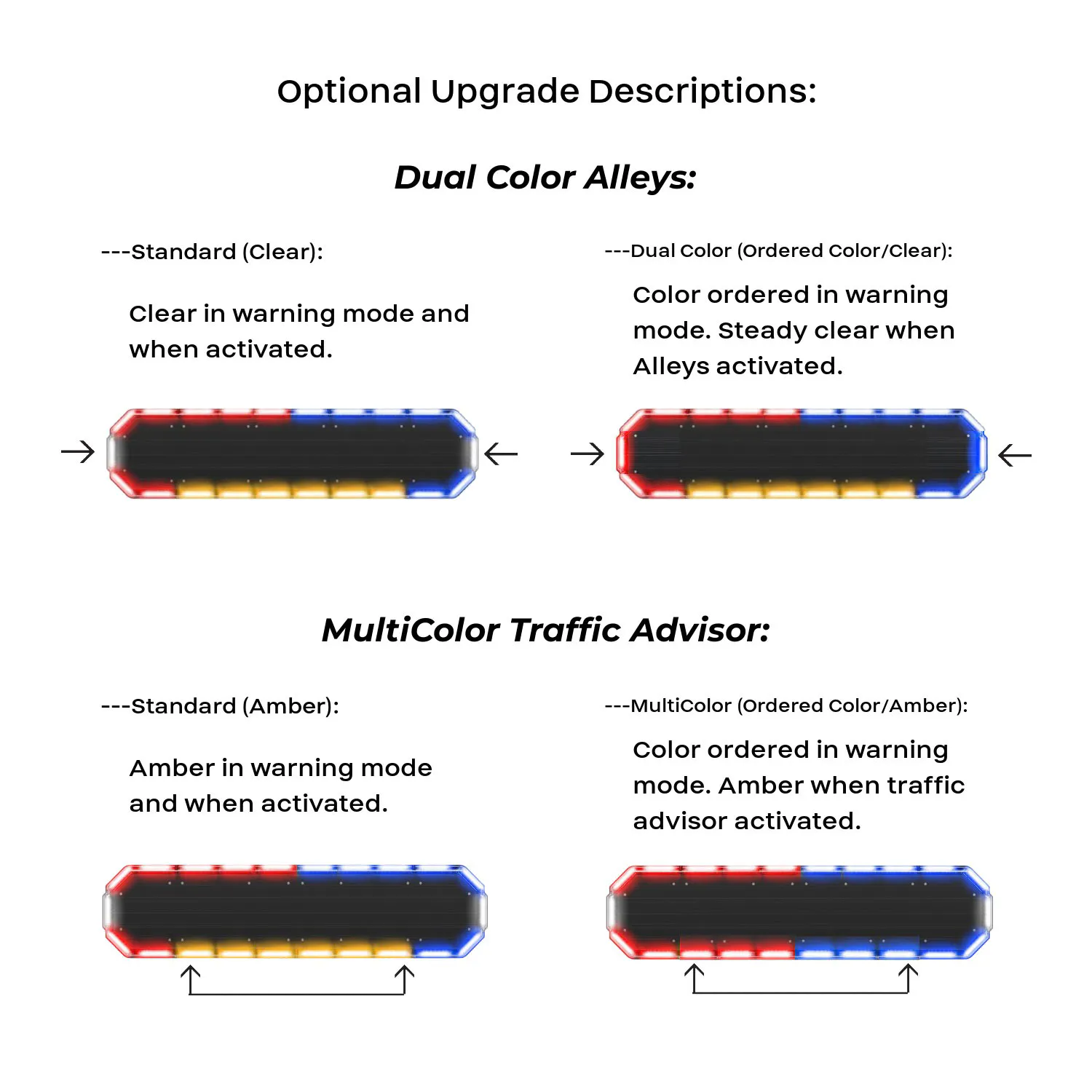

TD/Alley Option (Take Down will be Dual Color by default):
---Alley Standard Clear = Clear in warning mode and when activated.
---Alley Dual Color = Color ordered in warning mode / Clear when TDs and alleys activated.
Traffic Advisor Option:
---Standard Amber = Amber in warning mode and when activated.
---MultiColor = Color ordered in warning mode / Amber when traffic advisor activated.

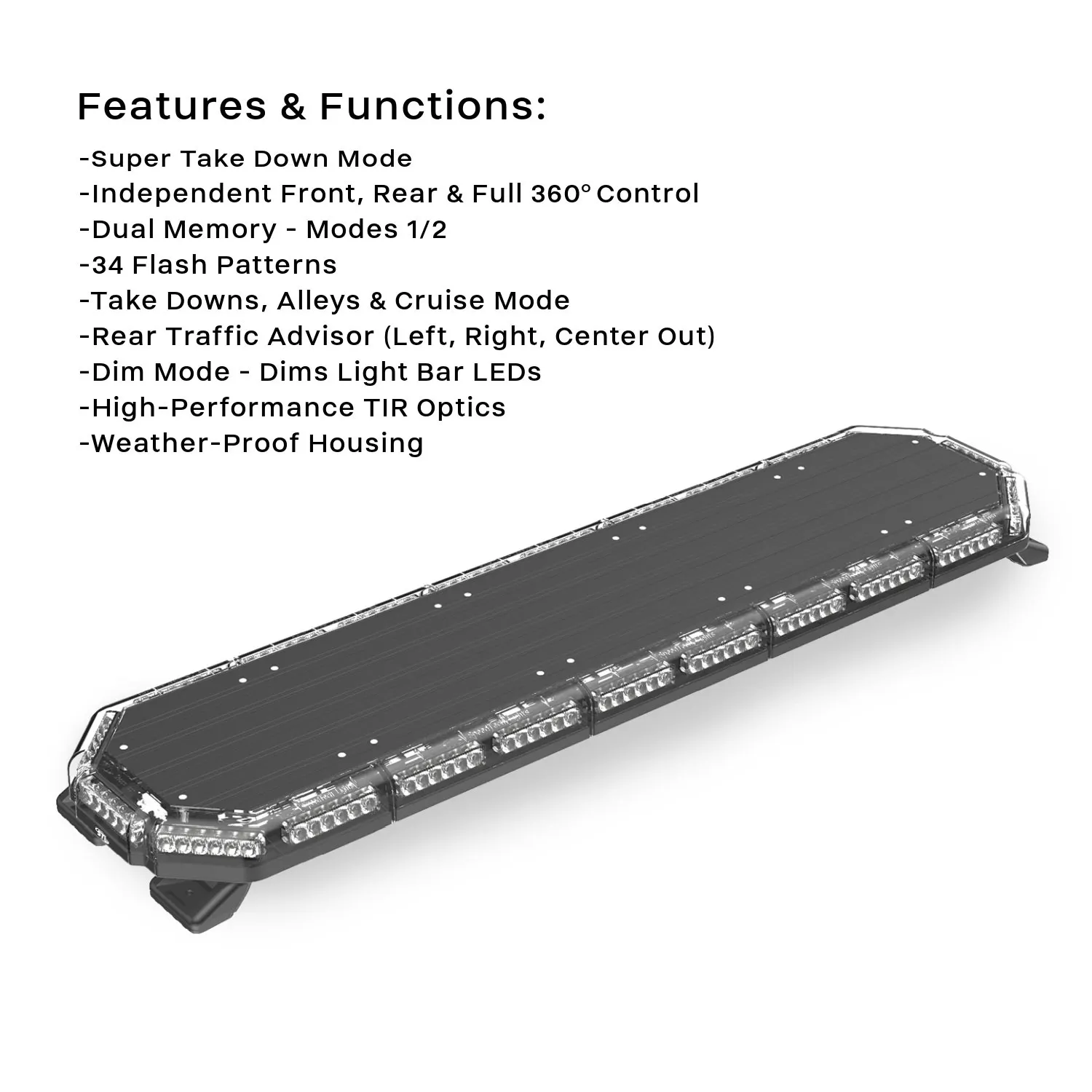

Features:
- NEW Dual Flash Pattern Memory Modes
- Powered by 12V
- SAE J845 Certification

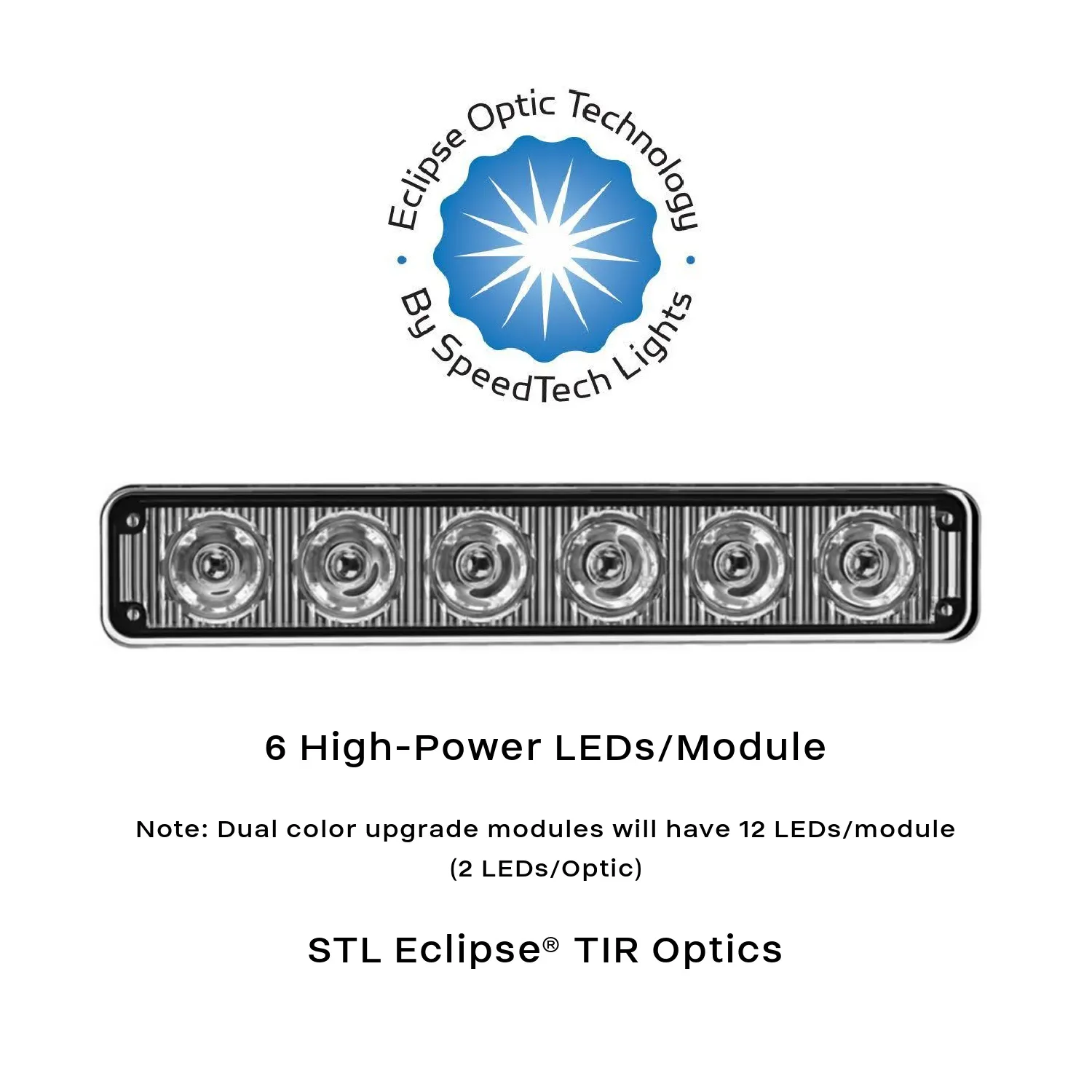

- Patented LED Eclipse® Optic Technology - TIR Optics
- 120 total 3-watt MaxGen® LEDs
- 30 available flash patterns
- Flashing functionality when in standard flash mode operating colors (ex. flashing red/blue)
- Super Take Down® functionality switches front 8 modules to all Clear LEDs when Super TD® mode is activated for extreme illumination
- Super TD® functionality offers steady burn and basic double flash capability
- Clear LED center front take-down and alley lights
- Built in amber arrow stick
- Upgradable multicolor traffic advisor functionality
- Arrow stick directions: right, left, center out
- Non-volatile memory recalls last flash pattern
- Lifespan of up to 100,000 hours
- Optional Supreme Control® Box sold separately
- 12' of cable from light bar to connector
- 12.5' of power cable from connector
- Multiple vehicle specific gutter bracket options sold separately
- Max 15.4 Amp draw
*See Terms and Conditions

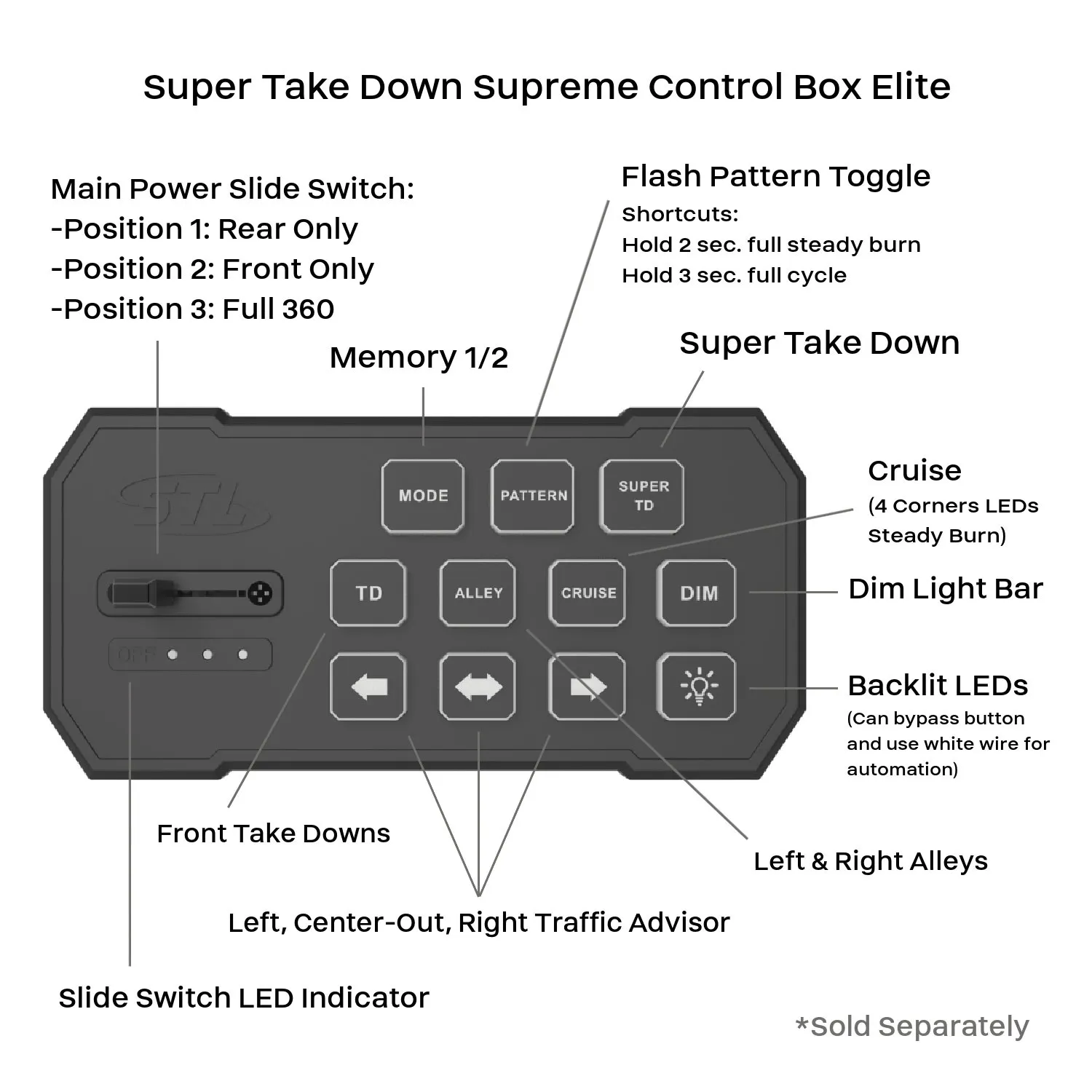

Night Mode w/ Optional Control Box (Sold Separately):
---Night Button Use = Toggle Night Mode on/off using Night Button while not hard-wiring the white cable.
---White Cable Use = Hardwire the free-standing white cable to your headlight +12VDC line to automate this feature. NOTE: This deactivates the usability of Night Button. Once hardwired, the Night button ceases to function. Make sure Night button is NOT activated before wiring white cable otherwise Night button will remain activated/illuminated.

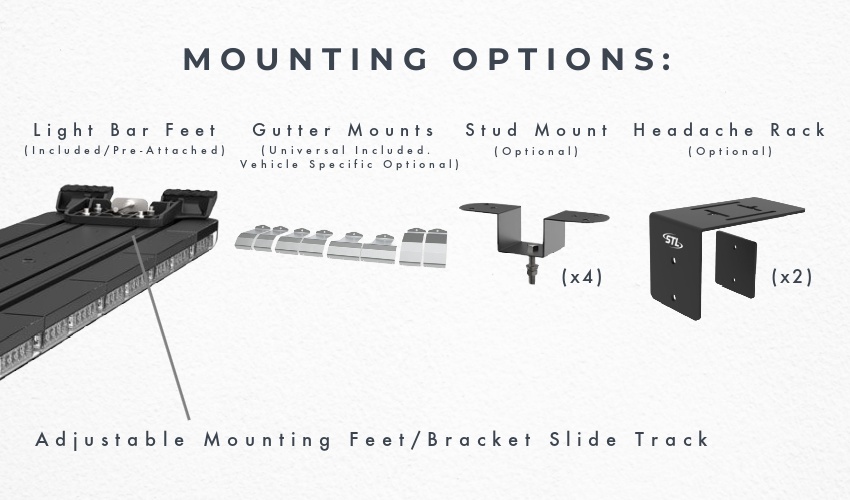

Mounting options
