Flash Quad Carbine-18 Dual Color 4" Square Off Road LED Floodlight / Work Light SKU: W-QCF18

  • $89.99
  • $59.99
  • You Save: $30.00
i
i
In Stock
ADD TO CART
  • image

    5 Year Warranty*

  • image

    60 Day Return Policy*

  • image

    CUSTOMER SUPPORT

  • image

    Free Shipping*

Application Photos

Videos

PRODUCT DEMO

About The Flash Quad Carbine-18® Dual Color 4" Square Off Road LED Floodlight/Work Light

The Flash Quad Carbine-18® Dual Color 4" Square Off Road LED Flood/Work Light from SpeedTech Lights features a total of 18 powerful LEDs providing two separate types of functionality. This unit features an all-white steady burn floodlight mode and a flashing amber mode with one singular blinking pattern. Get the best of both worlds and use this dual color square LED work light as both an illumination product or warning product. Check out the product video to see these functions in use. Get two in one with this awesome product.

With 9 of the 18 LEDs being utilitized for floodlight functionality and perfectly utilized optics to enhance the brightness, the all-white steady mode is sure to light up the scene whether being used for work or off road lighting. This model outputs a 120 degree wide flood beam for extreme illumination. The 9 floodlight LEDs are rated at 5-watts per LED while the 9 warning LEDs are rated at 1-watt per LED. This unit also has a lumen output of 2200-4000 lm making this product just an all around power house.

For installation purposes, this unit comes with a pigtail harness for wiring along with a bracket which attaches to the units built in mounting holes with installation. It's quick and easy to install and put to good use!

When it comes to LED work lights, off road lights, and floodlights, we've got you covered with tons of options to choose from on our website. This model of the dual color square off road LED work light is also offered in a circle/round version as well. All STL off road/work lights are backed by the SpeedTech Lights 5 year warranty so you can shop with confidence knowing you're getting a product that was built to last.


Features:

  • Powered by 10-30V
  • Steady floodlight / amber warning functionality
  • (18) total LEDs
  • (9) 5w LEDs (for floodlight mode)
  • (9) 1w LEDs (for warning mode)
  • 3,984 Lumens (floodlight mode)
  • Flood Optics - 45-watts Intensity
  • Flood Beam: 120 degrees
  • Amp Draw: 3.64A at 12V, 1.88A at 24V
  • Color Temperature: 5,693
  • RoHS compliant
  • Weatherproof IP67 housing
  • OSRAM LED Technology (work light LEDs)
  • Includes 19" of cable from unit to connector
  • Includes 8.5" of cable from pigtail connector
  • Includes eye bolt mount for installation
  • NOT compatible with STL Carbine 12V Relay with on/off switch or 12V Relay with On/Off + Remote
  • 5 Year Warranty*
  • *See Terms and Conditions

WHAT'S INCLUDED:
  • (1) Flash Quad Carbine-18® Dual Color 4" Square Off Road LED Floodlight/Work Light
  • Built-in Mounting Bracket
  • 19" of cable from unit to connector
  • 8.5" of cable from pigtail connector
OPTIONAL ADD-ONS (SOLD SEPARATELY):
  • Extension Cable

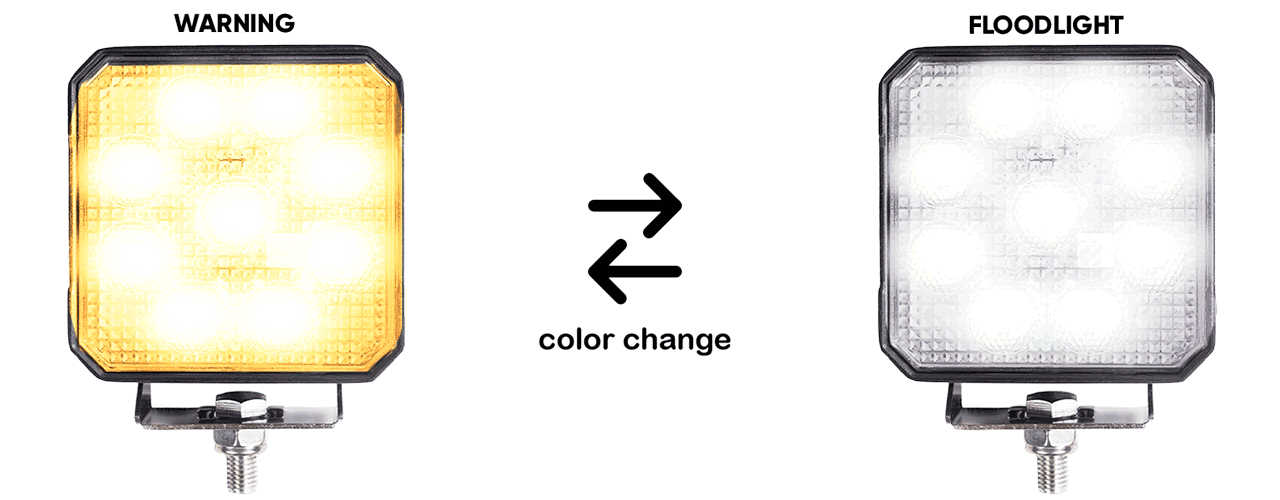

Warning vs Floodlight Mode
