Super TakeDown® MultiColor Raptor Linear LED Visor Light Bar (Dual Memory) SKU: B-RLMC10
- SAE Certification No. 180349
- RoHS Certification No. ENC171106GZ16
- U.S. Patent No. D797359
-
![image]()
5 Year Warranty*
-
![image]()
60 Day Return Policy*
-
![image]()
Eclipse Optic Technology
-
![image]()
Free Shipping*
Product videos
Videos
Specifications
Specifications
About The MultiColor Super TakeDown® Raptor® Linear Interior Split LED Visor Light Bar (Dual Memory)
The MultiColor Raptor® Linear Super TakeDown® Model Interior Split LED Visor Light Bar takes our Raptor Linear MultiColor model with clear configurations and combines that with our Super Take Down® Grand Control Box. This combination allows you to have direct access to the Super TD® button to activate your all white STD mode.
With a total of 72 high power MaxGen® Linear 3-watt LEDs, this high-power interior windshield visor light bar is bright, effective, and comes with a variety of features and functionality for multiple applications. It's surely one of the best bang for your buck LED visor light bars on the market.
Choose between a total of 36 flash patterns that feature both MultiColor flash mode and single color A or B flash mode. The MultiColor functionality of this bar allows both left and right sides to flash different colors in the same module based on your order giving you true MultiColor flashing functionality on top of the ability to activate your all-white LEDs for Super Take Down® mode. With the new dual memory modes, you can program up to 2 different patterns for a quick switch back and forth between memory 1 and memory 2 using the mode button(s).
With its built-in windshield reflector, universal or vehicle specific mounting brackets, and the optional STL Grand Control® Box, the Raptor® Linear Windshield Light Bar is easy to install and operate and is backed by SpeedTech Lights' trusted 5 year warranty. Take a look at our flash pattern and instructional videos to see the Super TD® MultiColor Raptor® Linear Interior LED Visor Light Bar in action.
WHAT'S INCLUDED:
- Raptor Linear Visor Light Bar

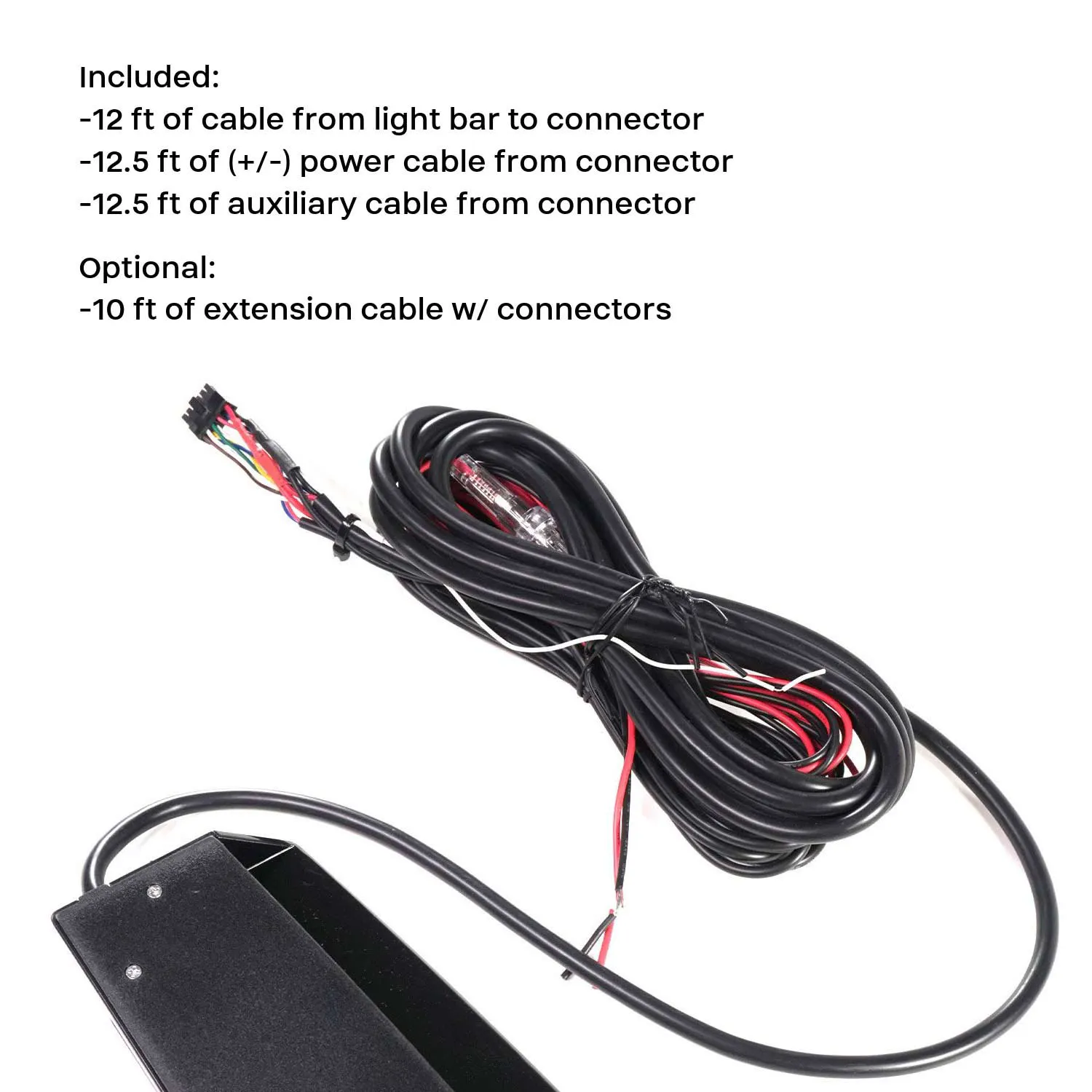

- 12' of Cable from Light Bar to Connector
- 12.5' of Power Cable from Connector
- Universal Headliner Brackets (unless different mounting option is selected in drop-down)
- STD Grand Control Box
- Cig-Plug vs Standard Hardwire
- 10' Extension Cable
- Vehicle Specific Headliner Brackets

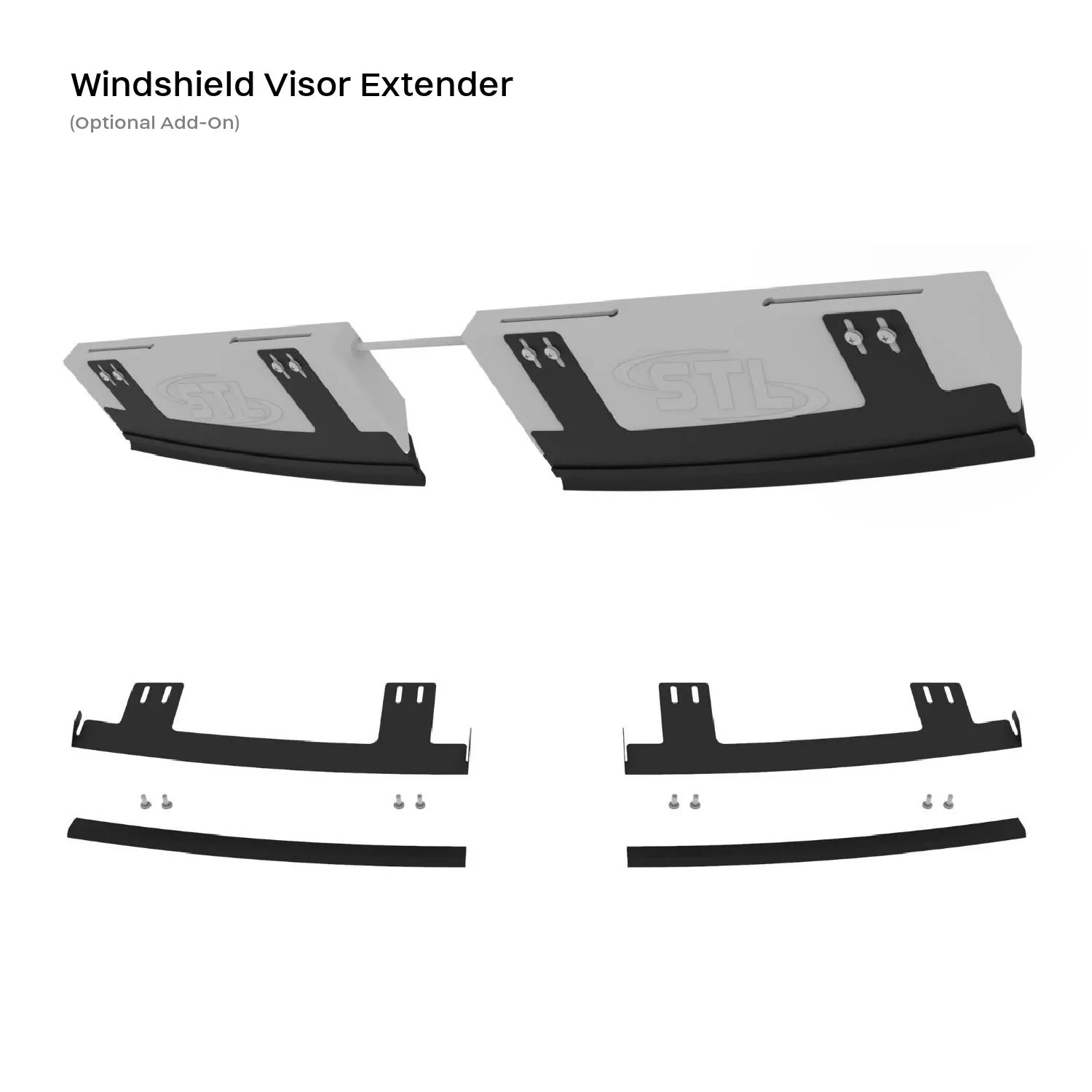

- Windshield Visor Extender

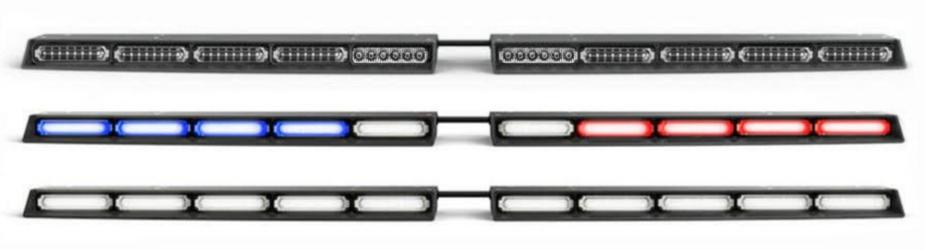

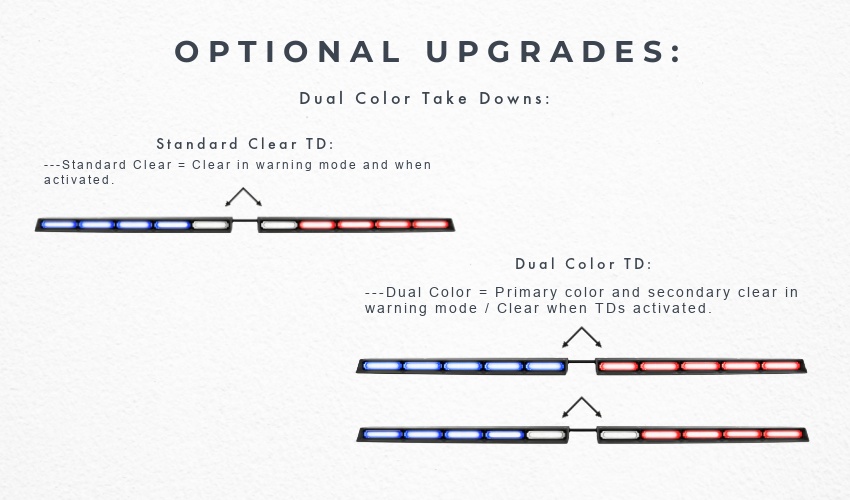

Take Down LEDs:
---Standard Clear = Clear in warning mode and when activated.
---Dual Color = Color/Clear in warning mode / Clear when TDs activated.
Features:
- NEW Dual Flash Pattern Memory Modes
- Powered by 12V
- Raptor® Series: SAE J595 Certified
- Patented LED Eclipse® Optic Technology - Linear Optics
- 72 Total MaxGen® Linear 3-Watt LEDs
- 8 MaxGen® TIR 3-Watt LEDs take-downs
- 36 total flash patterns
- 28 available flash patterns in MultiColor flash mode
- 4 flash patterns in color 1 mode
- 4 flash patterns in color 2 mode
- Non-volatile memory recalls last flash pattern
- Super Take Down® functionality switches to all Clear LEDs when Super TD® mode is activated for extreme illumination
- One clear Take-down module steady burn or flash in each section
- Optional Dual Color LED Take Down Module available for purchase (LED module flashes in light bar color/clear in flash mode then changes to clear when in take down mode)
- Sleek, durable casing
- Lifespan of up to 100,000 hours
- Optional STL Super Take Down® Grand Control® available for purchase
- Includes universal brackets
- Optional vehicle specific brackets available for purchase
- Built in windshield reflector
- Optional windshield visor extender available for purchase
- 12' of cable from light bar to connector
- 12.5' of power cable from connector
- 4.2 Amp draw
*See Terms and Conditions

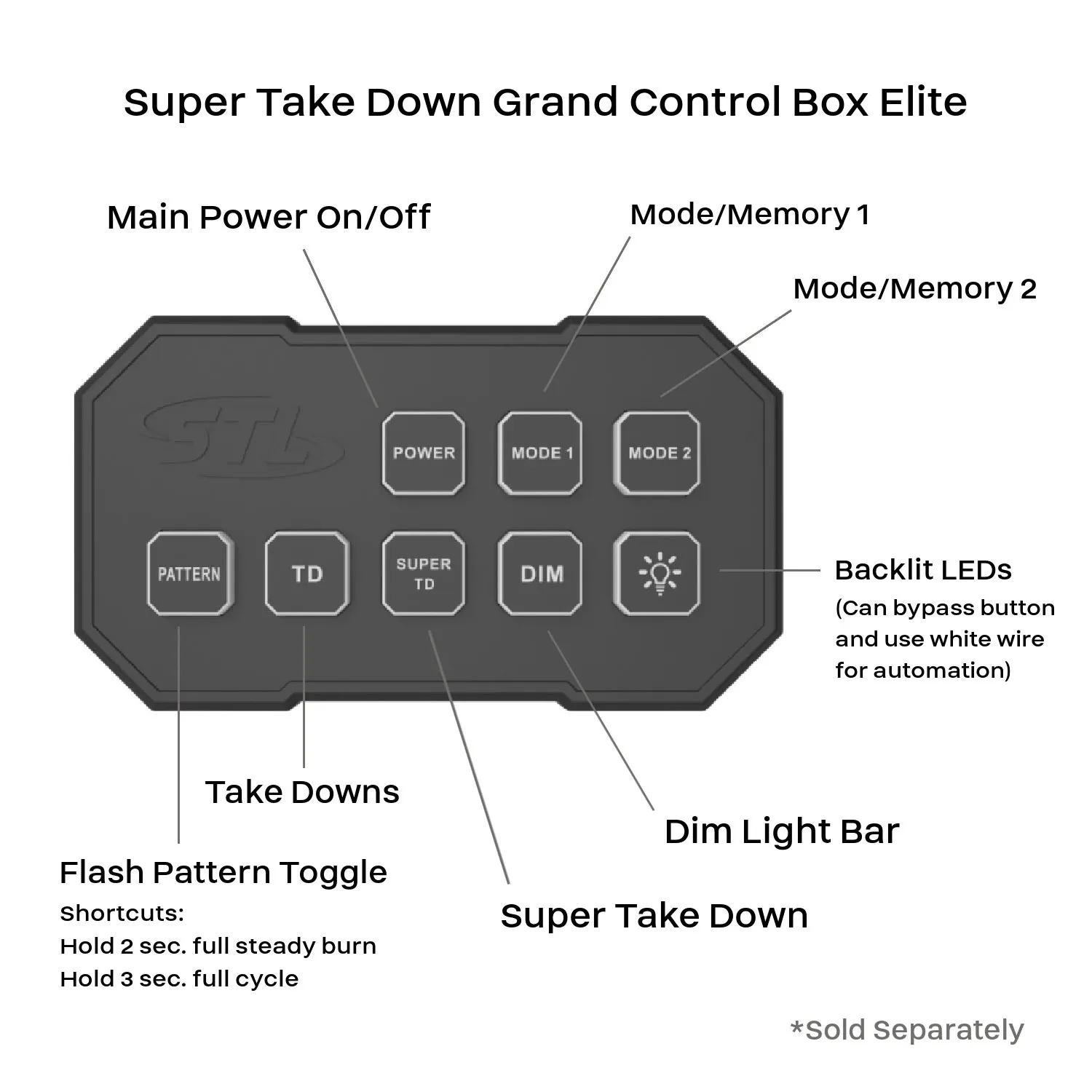

Night Mode w/ Optional Control Box (Sold Separately):
---Night Button Use = Toggle Night Mode on/off using Night Button while not hard-wiring the white cable.
---White Cable Use = Hardwire the free-standing white cable to your headlight +12VDC line to automate this feature. NOTE: This deactivates the usability of Night Button. Once hardwired, the Night button ceases to function. Make sure Night button is NOT activated before wiring white cable otherwise Night button will remain activated/illuminated.

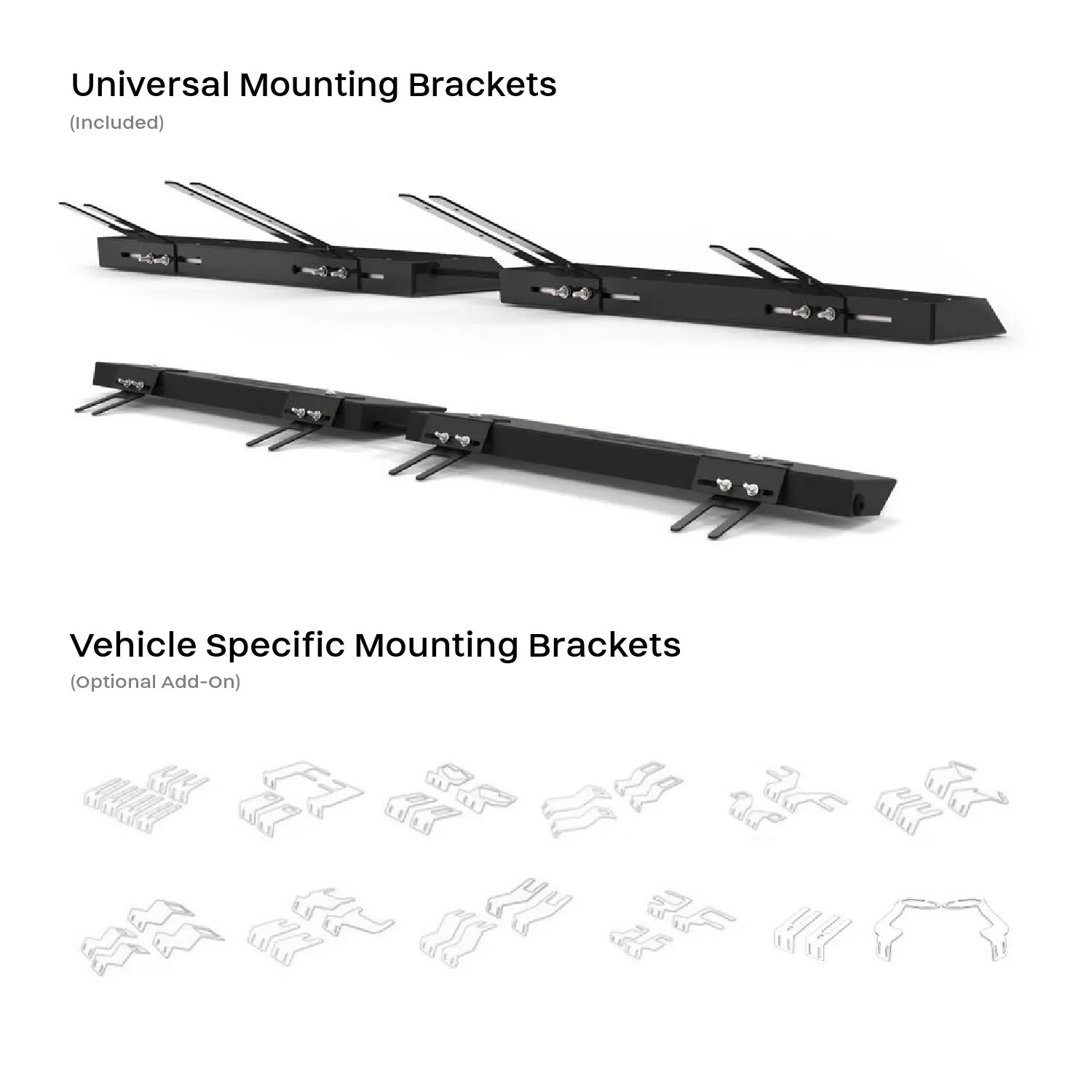

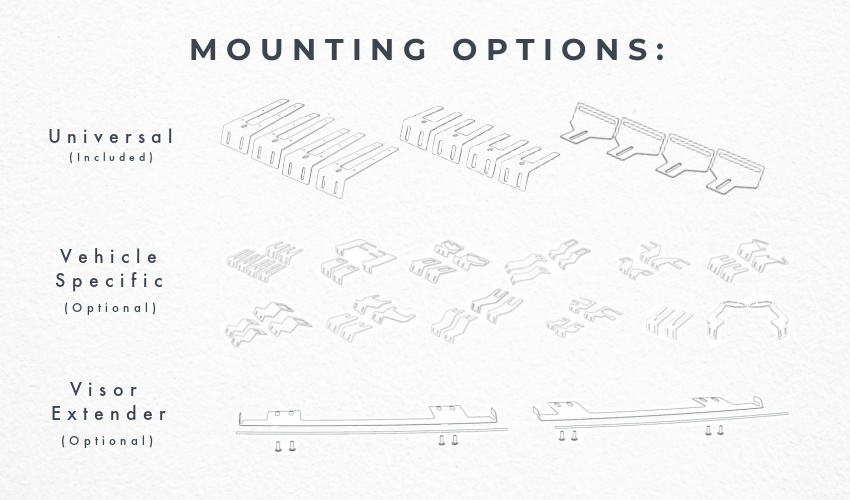

Mounting options
